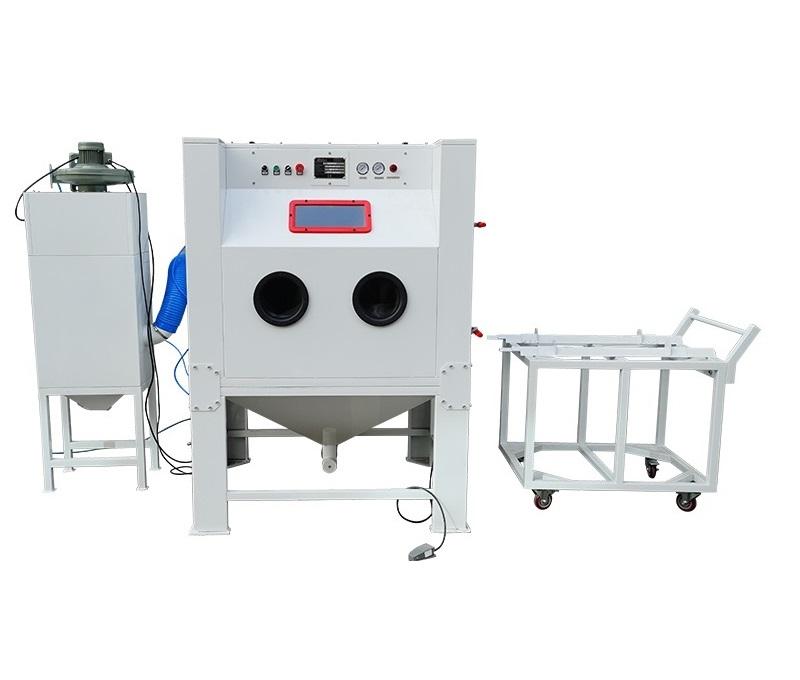

Manual sandblasting machine
Free shipping
Description
Dry sandblasting machine with suction blasting chamber, used for rust removal from metal.
Manual sandblasting machines are easy to operate and highly efficient. They feature
novel design, simple structure, reliable performance, convenient operation, high
efficiency, and low power consumption.

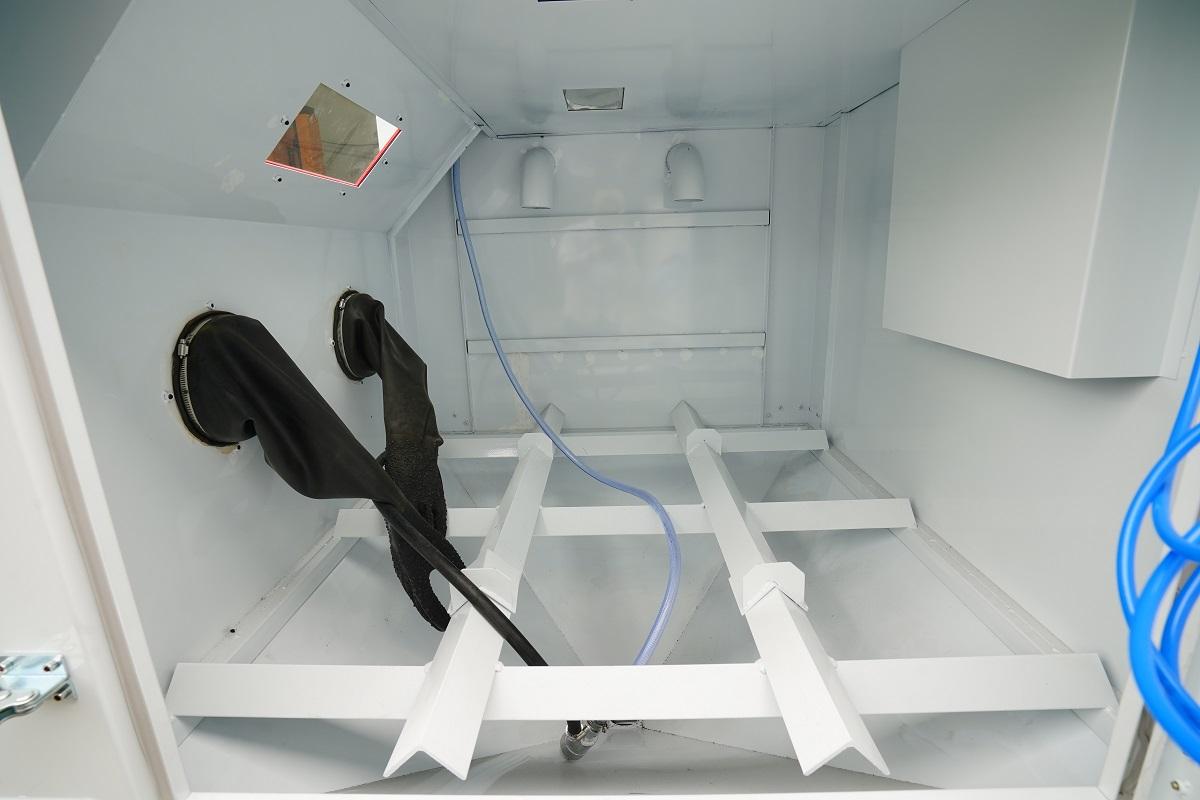

It is specially designed with a turntable and trolley, making it easy to handle
heavy work parts such as alloy wheels, molds, statues or forgings, castings,
welded parts, etc.Workshop dimensions: 1200mm (L) * 1200mm (W) * 800mm (H)
(customizable upon request).
Manual sandblasting Booth Features:
1.Standard configuration includes boron carbide nozzles, maximizing service life.
2. Well-sealed enclosed cabinet, preventing dust or abrasive leakage and
maintaining a clean environment.
3. Our sandblasting booths are welded from 2mm durable steel plates with a powder
coating for rust prevention and extended lifespan.
4. Blasting operations are controlled by a foot pedal switch, increasing safety
and reducing operator fatigue.
5. Built with light, improving blasting efficiency.
Applications of sandblasting machines
Suction blasting machines can clean rough surfaces on forgings, castings, welded
parts, heat-treated parts, and machine components.
Product parameters
| Parameter | Specification |
|---|---|
| Model | 1212FTA |
| Overall Dimensions | 1200L × 1680W × 1840H mm |
| Work Chamber | 1200L × 1200W × 800H mm |
| Turntable | Ø800 mm |
| Loading Capacity | Max 200 kg |
| Door Size | W830 × H770 mm |
| Power Supply | 110V/220V, 50-60Hz (Custom) |
| Motor Power | 0.75 kW |
| Lighting | 18W Fluorescent |
| Blasting Gun | 1 pc with Boron Carbide Nozzle |
| Compressed Air | 5-8 Bar (kg/cm²) |
| Air Consumption | 0.5-1.2 m³/min |
Custom-made cabinets with sandblasted dimensions are available!
| Model | 9080 | 1010 | 6050 | 1212 |
|---|---|---|---|---|
| Work Chamber | 900×800×800 mm | 1000×800 mm | 600×500×650 mm | 1200×800 mm |
| Voltage | 220V / 380V Single-phase, Three-phase |
