HOLDWIN Sandblasting Helmet – Blue, Safe Air Feed & 5-Piece Replaceable Lens
✔ Free shipping
✔ USA/CA Fast Shipping
✔ 30-Day Return & Warranty
Description
Product Overview

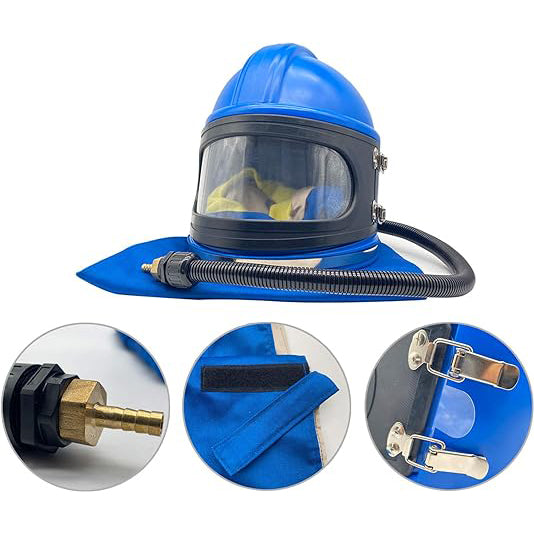

The HOLDWIN Sandblasting Helmet is designed for abrasive blasting and surface preparation applications. Made with a durable PC+ABS shell, the helmet provides head and face coverage while incorporating a supplied-air system for improved comfort during blasting operations.
The helmet features a wide viewing area, replaceable PVC lenses, adjustable airflow channels, shock-absorbing headgear, a flexible neck seal, and multi-layer sound-insulating foam.
With a blue outer shell and 5 replaceable lenses, it is designed for convenient maintenance and repeated use in demanding blasting environments.
Product Highlights
1. Durable PC + ABS Construction
The helmet is made from PC+ABS material, offering a durable structure for demanding blasting environments.
The material is designed to be durable, non-toxic, and odorless, making it suitable for extended work applications.
2. Wide Field of Vision
The helmet provides a wide viewing area to help operators maintain a clear view of the workpiece during blasting.
The lens can also be conveniently replaced when it becomes scratched or worn.
3. 5-Piece Replaceable PVC Lenses
The helmet uses PVC lenses and comes with 5 replaceable lenses.
The replaceable design makes routine maintenance easier and helps extend the usable life of the helmet.
4. Adjustable Airflow
The helmet supports the installation of airflow channels that help distribute and adjust the air inside the helmet.
Proper airflow distribution can help improve visibility and operator comfort during blasting.
5. Comfortable Adjustable Headgear
The top of the helmet features a shock-absorbing adjustable headgear system.
The adjustable design helps provide a more secure and comfortable fit for different users.
6. Flexible Neck Seal
The neck area features a flexible sealing interface designed to improve the overall fit and sealing performance of the helmet.
7. Multi-Layer Noise Insulation
The helmet incorporates multi-layer sound-insulating foam to help reduce noise inside the helmet and create a more comfortable working environment.
Air Supply & Temperature Regulation
The helmet is designed to work with a compatible compressed-air supply and temperature regulation system.
Cooling / Temperature Adjustment Range
10–30°C
Air Consumption
0.06 m³/min at 0.7 MPa
Rated Air Pressure
0.4–0.8 MPa
Recommended working pressure: 0.7–0.8 MPa
The temperature regulation system can help provide more comfortable airflow during different working conditions.
Product Specifications
| Specification | Details |
|---|---|
| Brand | HOLDWIN |
| Product Type | Air-Supplied Sandblasting Helmet |
| Color | Blue |
| Helmet Material | PC + ABS |
| Lens Material | PVC |
| Pipe Material | Silicone |
| Lens Quantity | 5 Pieces |
| Temperature Adjustment Range | 10–30°C |
| Air Consumption | 0.06 m³/min @ 0.7 MPa |
| Rated Air Pressure | 0.4–0.8 MPa |
| Recommended Air Pressure | 0.7–0.8 MPa |
| Lens Size | 40 × 14 cm / 15.7 × 5.5 in |
| Helmet Size | 24.5 × 27 × 29 cm / 9.6 × 10.6 × 11.4 in |
| Pipe Length | 72 cm / 28.3 in |
| Pipe Diameter | 35 mm / 1.38 in |
| Pipe Orifice Diameter | 16 mm / 0.6 in |
| Sandblasting Suit Size | 80 × 100 cm / 31.5 × 39.4 in |
Applications
The HOLDWIN Sandblasting Helmet is suitable for:
-
Sandblasting
-
Abrasive blasting
-
Rust removal
-
Paint stripping
-
Surface cleaning
-
Metal surface preparation
-
Industrial maintenance
-
Surface treatment
-
Workshop blasting operations
It is especially suitable for environments where operators need head protection, clear visibility, supplied airflow, and comfortable long-duration wear.
Important Safety Information
This helmet should be used together with a compatible and properly filtered compressed-air supply system.
The listed air pressure and consumption specifications should be followed during operation. Before each use, inspect the helmet, lenses, air hose, seals, and connections for signs of damage or wear.
Important: This helmet itself does not generate oxygen. The term “safe air feed” refers to the supplied-air system. Always use an appropriate clean-air source that meets applicable respiratory protection requirements.
Package Includes
-
1 × HOLDWIN Sandblasting Helmet
-
5 × Replaceable PVC Lenses
-
Air supply pipe and related components according to the selected configuration
Clear Vision. Comfortable Airflow. Reliable Blasting Protection.
The HOLDWIN Sandblasting Helmet combines a durable PC+ABS shell, wide viewing area, 5 replaceable PVC lenses, adjustable airflow, comfortable headgear, neck sealing, and multi-layer noise insulation.
Wide Vision · 5 Replaceable Lenses · 10–30°C Temperature Adjustment · 0.4–0.8 MPa Air Pressure · Adjustable Headgear · Noise-Insulating Design
Get your HOLDWIN Sandblasting Helmet ready for the next blasting job.
This product has no reviews yet.
You may also like
FAQ
These are the most frequently asked questions from our customers regarding our sandblasting accessories. Have any other questions? Please contact our customer support.
Our customer support hours are Monday to Saturday.
Average response time: 24 hours.
Does this helmet provide comprehensive protection and maintain visibility under prolonged abrasive operations?
Yes. The helmet is engineered to shield the entire head, face, and eyes from abrasive rebound and dust. It includes a replaceable visor to ensure sustained clear visibility during extended blasting sessions.
How is nozzle wear assessed, and what materials ensure optimal durability?
Nozzle wear is indicated by decreased blasting efficiency or visible erosion. Our nozzles are manufactured from high-durability ceramic or tungsten carbide to maximize lifespan under continuous abrasive conditions.
Are these gloves engineered for abrasion resistance and long-term operational safety?
Yes. Constructed from heavy-duty rubber with extended cuffs, the gloves protect hands and forearms from mechanical wear, abrasive media, and dust ingress, ensuring safe and reliable operation.
What are the operational specifications for pressure and compatible abrasive media?
The pneumatic sandblasting gun is compatible with standard compressors (typically 60–120 PSI) and supports a wide range of abrasive media including aluminum oxide, glass beads, silicon carbide, and steel grit, suitable for professional surface preparation.
