HOLDWIN

Wheel Sandblasting Cabinets

Name: Wheel Sandblasting Cabinets
Brand: HOLDWIN
Price: 2000.0 USD
Availability: OutOfStock

$2,000.00

Sold out

Free shipping

Fast delivery

model:

9080

9080 1010 1212

Variant

Description

Product Description

Industrial Sand Blasting Cabinet Sandblaster Machine for Alloy Wheel

Manual dry sand blast cabin are applied to surface treatment of various metal or non-metal parts. It is an economical solution that achieve all general surface finishing purpose, such as stripping, derusting, deburring, cleaning, decorating etc.

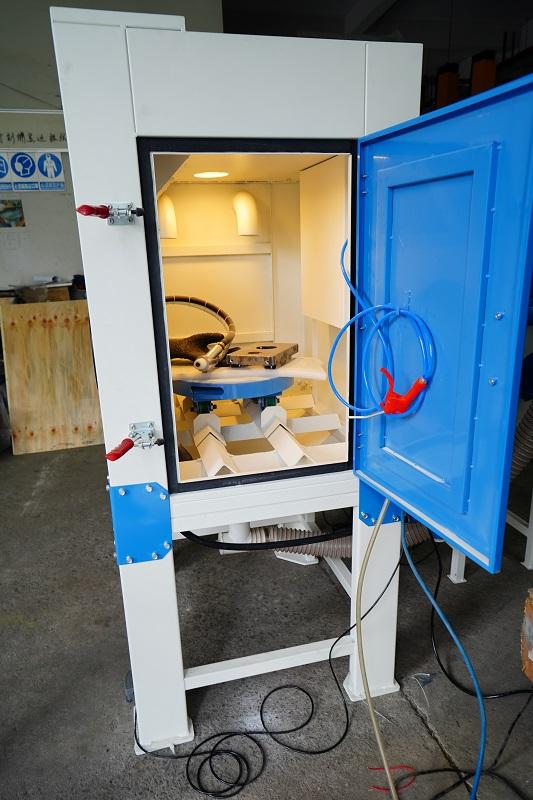

9080FTA suction sandblasting cabin with turntable and cart, working size L900*W800*H800mm is designed for small or middle workparts, we supply a variety of standard sizes as well as custom models for special demands. As request, the blaster can be made common suction type, direct pressure type, or wet abrasive type.

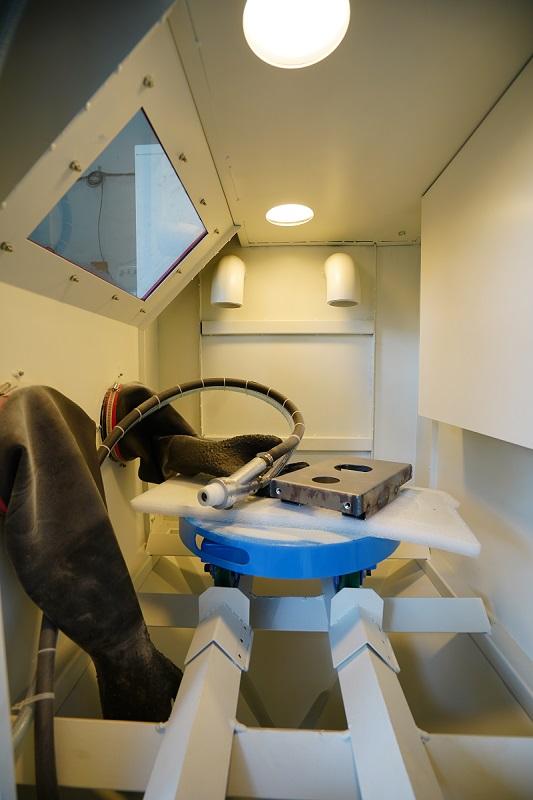

It is specially designed with turntable and cart, making it effortless to handling heavy workparts, such as alloy wheels, moulds, statues, or forgings, castings, welded components, etc.

Detailed Images

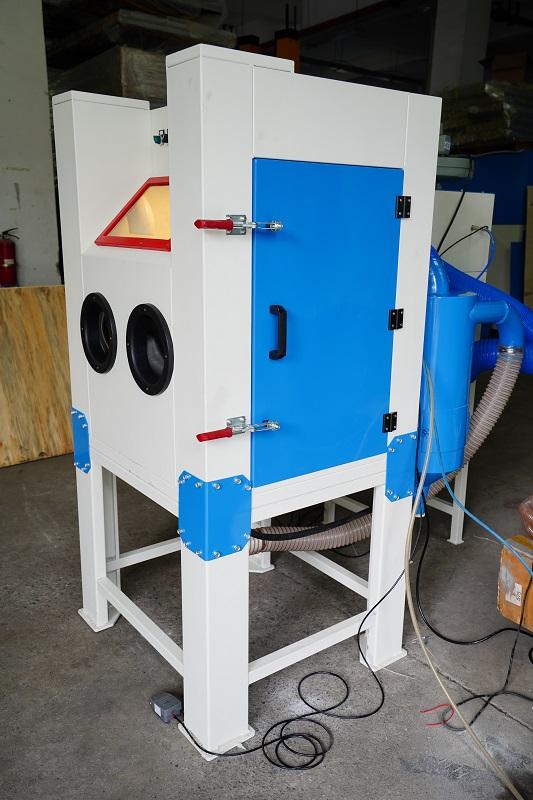

1.The sandblasting cabinet is made of high quality steel plated, surface is powder coated, sturdy and corrosion resistent.

2. Cyclone separator sepcially equipped for separating fine abrasives and dust, increase the abrasive recycling rate.

3. Abrasive flow regulator used abrasive is recirculated continuously throughout the blasting operation. An abrasive flow regulator controls and ensures the smooth flow of abrasive.

4. Blasting gun is alloy body holder complete with durable boron carbide nozzle.

5. There is an abrasive funnel at the bottom of the blast cabinet, used abrasives can be recycled to save cost.

6. Cartridge filter dust collector ensures that only clean and dust-free air is discharged to the atmosphere.

7. Foot pedal switch to control the work of blasting gun, which reduces the user’s fatigue, facilitates the operation and ensures the safety.

Product Paramenters

Model	9080FTA
Overall Dimension	11309001850 (LWH mm)
Work Chamber	900800800 (LWH mm)
Turntable	Diameter 800mm
Loading	Max. 100kgs
Power Supply	110V/220V, 50-60Hz (customized)
Motor Power	0.75kw
Lighting	18w Fluorescent
Blasting Gun	1 piece with boron carbide nozzle
Compressed Air	5-8 bar(kg/cm2)
Flow	0.5-1.2m3/min

The cabinet of sand blasting size aslo can be customized

Model	KF-9080	KF-1010	KF-1212
Working cabinet size	900800800mm	10001000800mm	12001200800mm
Voltage	220V /380V Single phase .three phase

Application

Sandblasting machine applications

1.This industrial turnable dry sandblasting machine suitable for heavy workpieces, such as various type of mold tree, statue, castings, motor, etc.

2. Specially designed manual carts( electric carts), comvenient and quick. Operation and maintenance easy to learn.

3. Maybe base on customer demand, select manual or automatic rotary tables.
